Infra-Red Heating Assemblies

Features:

Anodized aluminium body designed to breathe
Stainless steel element provides very even heat over the length of the warming area
Energy regulator control to precisely regulate heat output

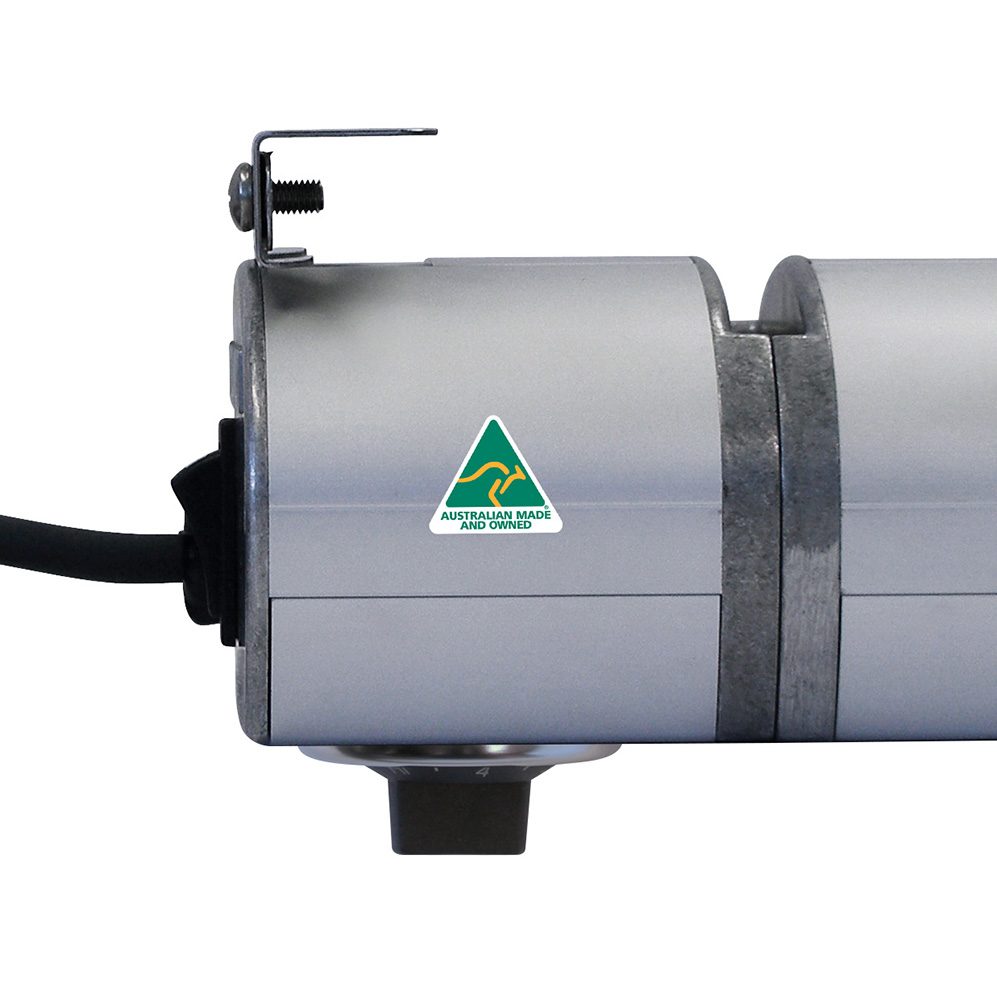

All assemblies are fitted with a standard “L” shaped mount bracket
Optional mount kit with tubular framing is also available for all models

Description

Roband is delighted to play our part in the offical Australian Made campaign.

A wide range of equipment now carries the official “Austalian Made” logo from Roband branded bench top equipment to grill stations, milkshake mixers as well as the Austheat range of floor standing electric fryers & griddle/griddle toaster.

All backed with industry leading warranty, parts and service.

Roband infra-red heat assemblies are manufactured from an exclusive extruded anodized aluminium section, specifically designed to breathe.

These units are designed for use at either front or back of house where more heat and no light is required. The heat is provided by a stainless steel element and an energy regulator is used to precisely control the output, emitting a very even heat over the length of the warming area.

Standard Models

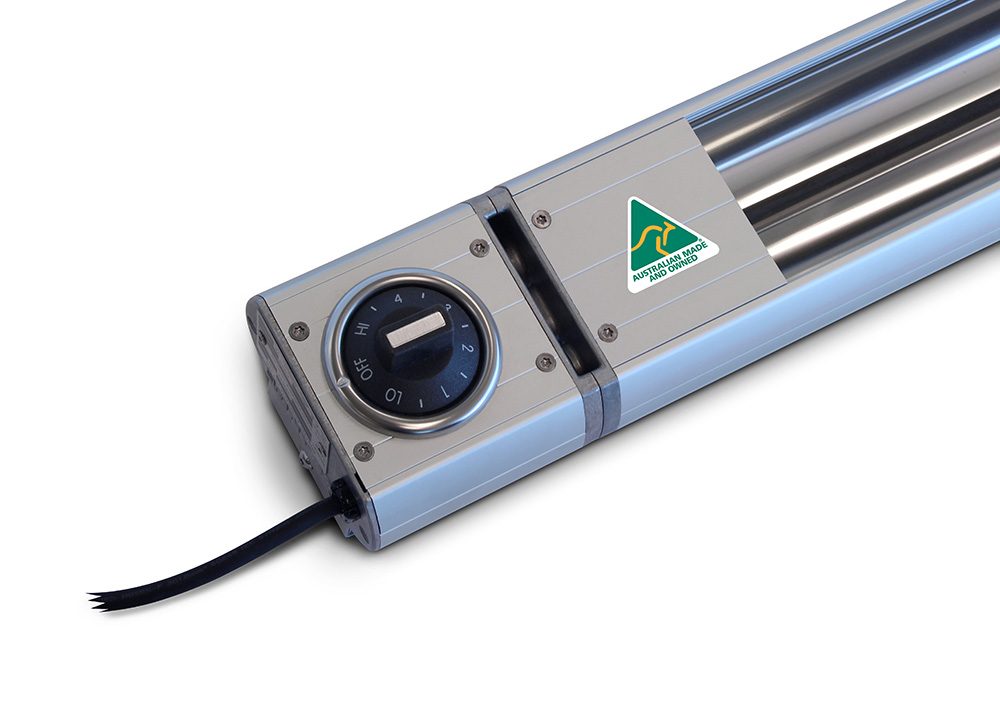

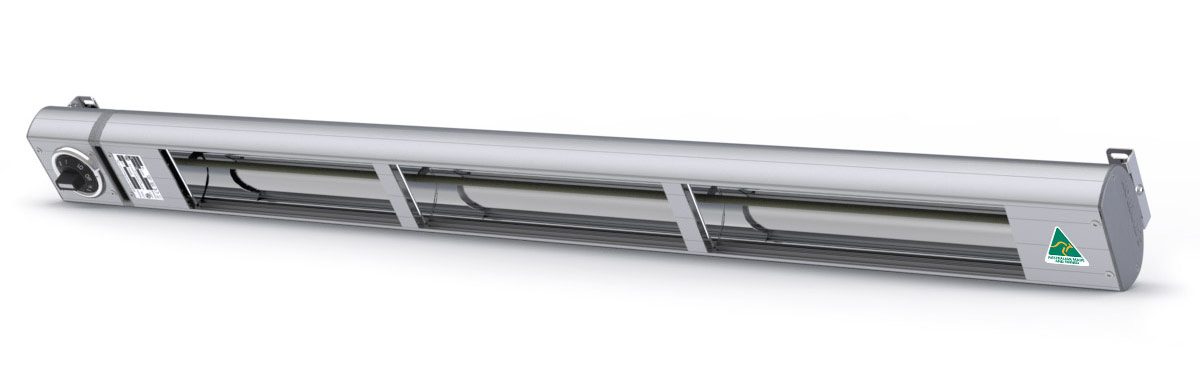

The standard heat assemblies (e.g. HE900) come with a control box that houses the isolating on/off switch and an energy regulator to control heat output. They also feature a simple mounting system and come complete with a 10 Amp plug and cord. Optional mount kits with tubular framing are available for standard models however a licensed electrician is required for installation.

Fabricator Models

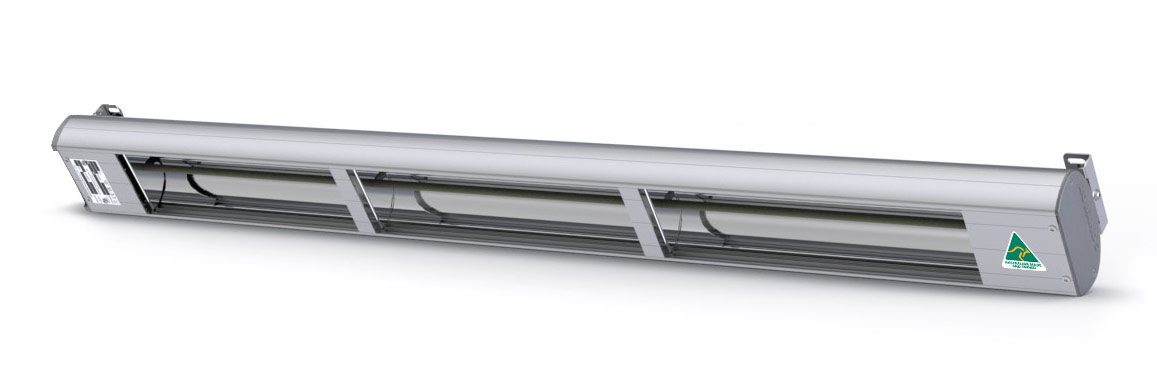

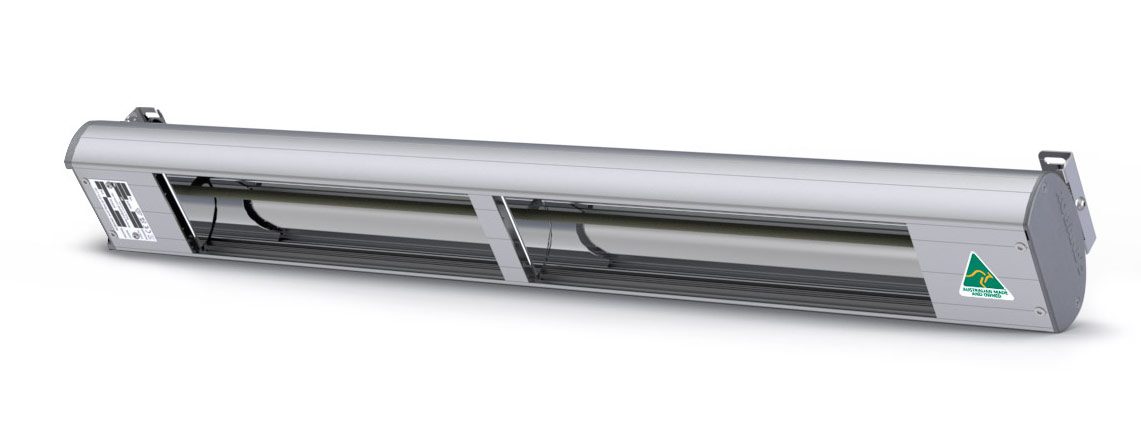

The assemblies are also available without the control box, energy regulator and on/off switch (e.g. HUE825) so they can be connected to a remote switch setup. The removal of the control box shortens the length of the assembly accordingly. These HUE models come with the standard mounting mechanism, or optional mount kits which are available with tubular framing.

HE end dimensions — Dimensions for Standard Infra-Red (HE) models. The mount bracket is removable.

Downloads

Download Infra-Red Heating Assemblies Brochure

Click here to download instructions of current product version

Click here to download the HM600 instructions

Model Details – With Control Box:

Model Number	Description	Mount Type	Power	Current	Length (mm)	RRP AUD Ex GST

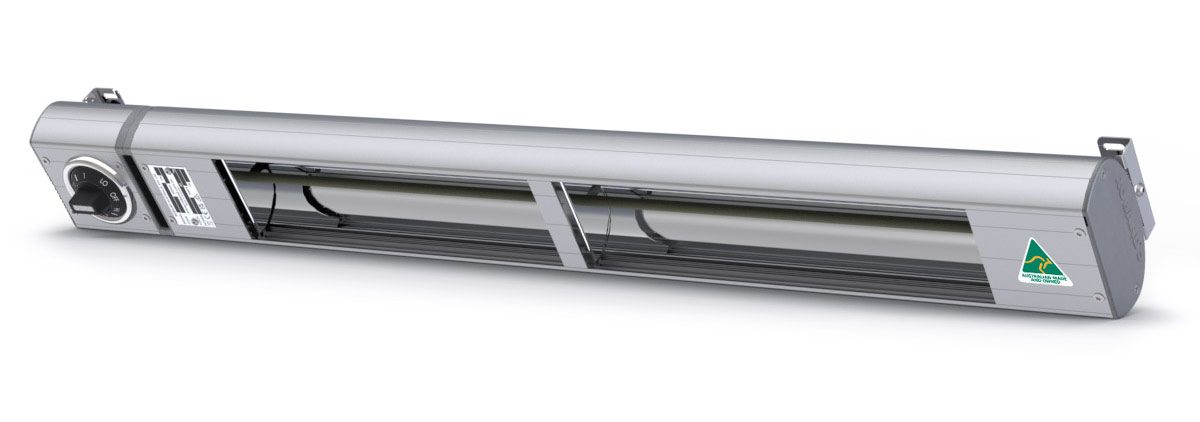

HE900	1 element, central heat control	Standard	900 Watts	3.9 Amps	900	$ 550
HE1200	1 element, central heat control	Standard	1200 Watts	5.2 Amps	1200	$ 590

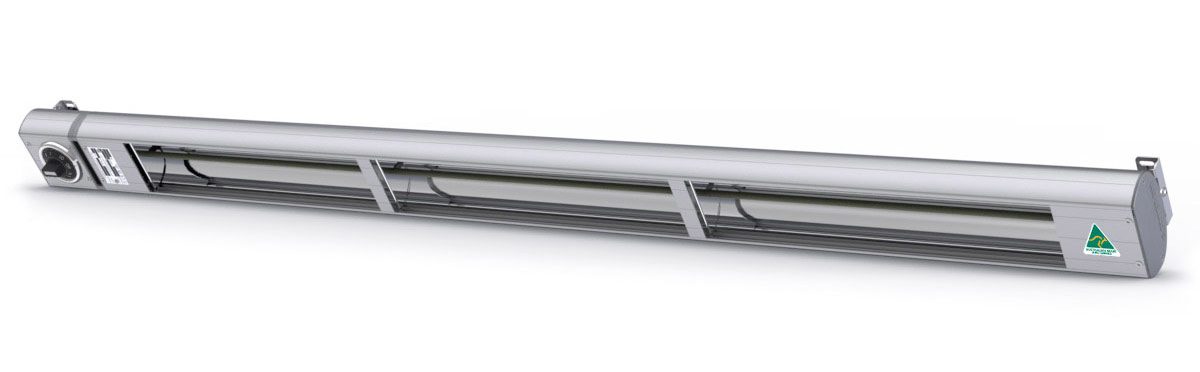

HE1500	1 element, central heat control	Standard	1500 Watts	6.5 Amps	1500	$ 689

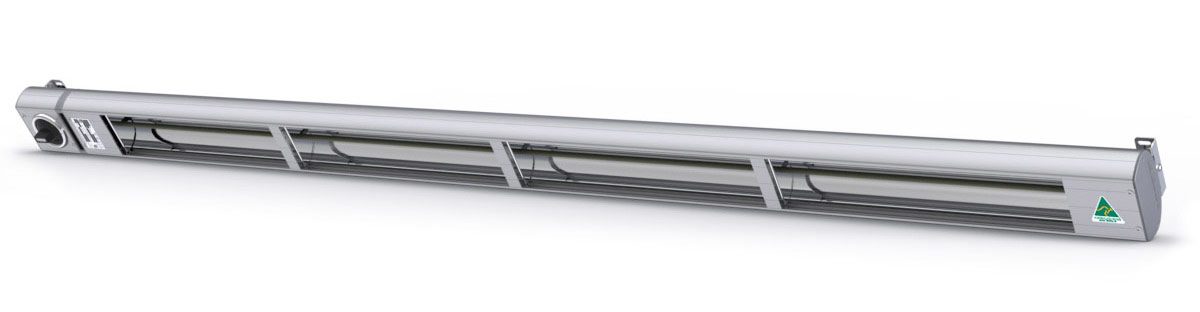

HE1800	1 element, central heat control	Standard	1800 Watts	7.8 Amps	1800	$ 769

Model Details – Without Control Box:

(Complete with 1700 mm flying leads (A, N & E) for installation and remote switch)

Model Number	Description	Mount Type	Power	Current	Length (mm)	RRP AUD Ex GST
HUE825	1 element	Standard	900 Watts	3.9 Amps	825	$ 415
HUE1125	1 element	Standard	1200 Watts	5.2 Amps	1125	$ 447

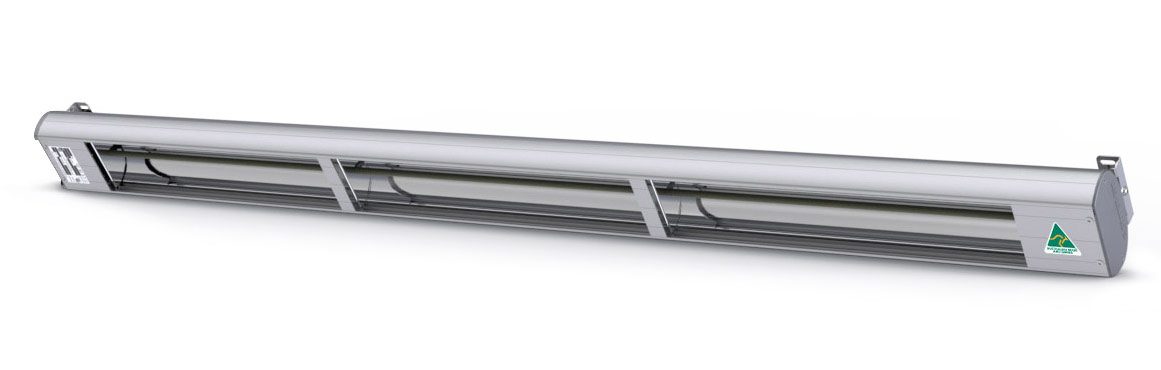

HUE1425	1 element	Standard	1500 Watts	6.5 Amps	1425	$ 495

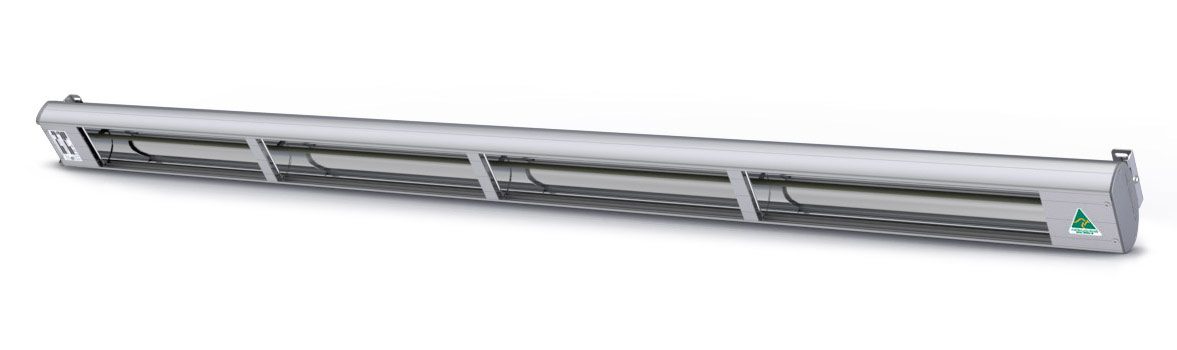

HUE1725	1 element	Standard	1800 Watts	7.8 Amps	1725	$ 538

Optional Accessories:

Model Number	Description	Mount Type	Length (mm)	RRP AUD Ex GST

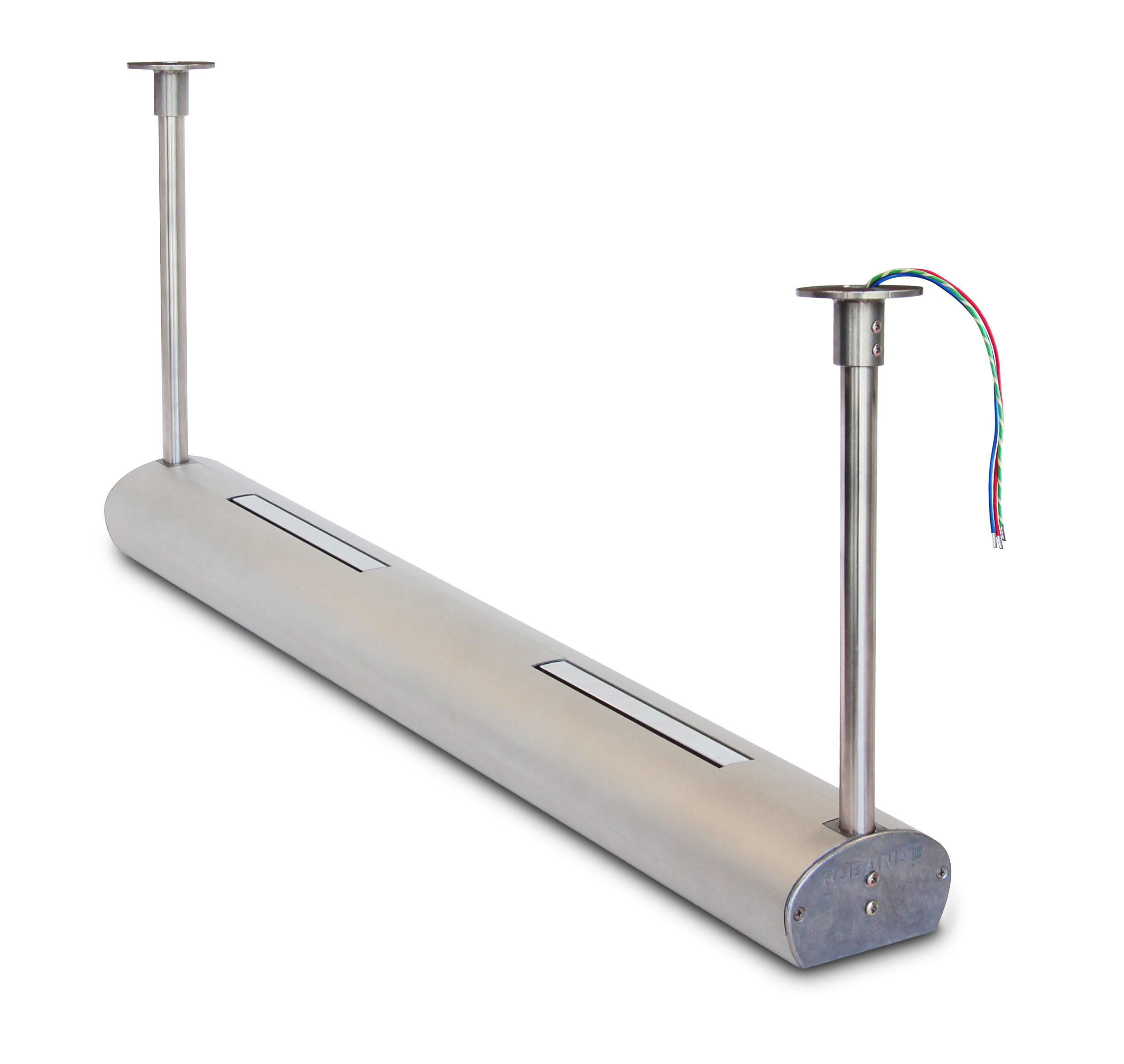

HM600	Mount kit for all Quartz lamp & Infra-Red heat assemblies. 2 x 19 mm diameter round tubes, inserts and mounting brackets, with instructions for installation by an electrician. 600 mm tubes can be cut to the desired length on-site.	Round tube	600	$ 157

Note: The HM600 is excluded from the official Australian Made and Owned certification.

Call Roband Australia on +61 2 9971 1788 to find the location of your nearest Authorised Dealer who can provide you with further information.
